Revopoint MetroY & MetroY Pro Wireless 3D Scanner

Revopoint MetroY & MetroY Pro Wireless Blue Laser 3D Scanners

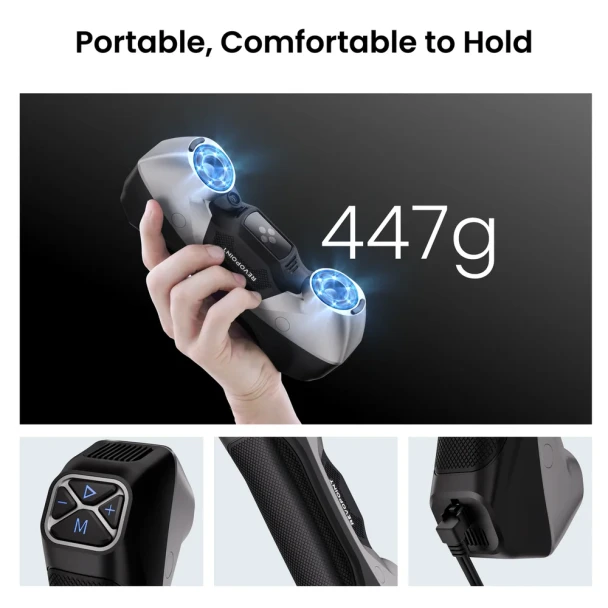

The Revopoint MetroY Series combines high-speed blue laser scanning, professional accuracy and wireless connectivity in a portable 3D scanner designed for small to medium-sized workpieces.

Both the MetroY and MetroY Pro provide up to 0.02 mm single-frame accuracy, volumetric accuracy of 0.02 mm + 0.04 mm × L (m) and fused point distances down to 0.05 mm. They are well suited to reverse engineering, product development, mechanical parts, automotive components, inspection, prototyping and 3D printing workflows.

Choose MetroY for fast handheld blue laser scanning or step up to MetroY Pro for faster laser capture, more cross laser lines, full-field structured blue light, feature tracking, colour scanning in automatic turntable mode and automated desktop scanning.

• Industrial-Grade Accuracy: Up to 0.01 mm single-frame precision and 0.02 mm single-frame accuracy.
• Excellent Volumetric Accuracy: 0.02 mm + 0.04 mm × L (m) on both MetroY and MetroY Pro.
• Up to 34 Cross Laser Lines: Rapidly capture flat, dark, metallic and complex surfaces.
• 15 Parallel Laser Lines: Capture edges, fine geometry and detailed surfaces.
• Single-Line Deep-Hole Mode: Capture recessed features, narrow grooves, holes and grills.
• Up to 2,000,000 Points/s: MetroY Pro provides high-speed laser capture for larger or more complex jobs.
• Wi-Fi 6: Supports wireless PC-to-mobile scan streaming using Revo Mirror.
• USB-C Connectivity: Direct connection to a Windows or macOS computer.
• Real-Time Temperature Monitoring: Integrated temperature monitoring helps maintain consistent accuracy during extended scans.
• Revo Metro Included: Free scanning and post-processing software for Windows and macOS.

MetroY vs. MetroY Pro

Three High-Performance Blue Laser Modes

Both MetroY and MetroY Pro include three dedicated blue laser scanning modes, allowing the scanner to adapt to different surface types and geometry.

Cross-Line Laser Mode

Cross-line scanning is designed for rapid capture of broad areas. MetroY projects 30 blue cross laser lines, while MetroY Pro increases this to 34 cross laser lines.

This mode is particularly useful for flat surfaces, dark materials and many metallic or reflective components that may otherwise be difficult to scan.

Parallel-Line Laser Mode

Fifteen high-powered parallel blue laser lines provide detailed capture of edges, contours and complex surface geometry. Parallel-line scanning is useful when maximum geometric detail is more important than raw scanning speed.

Single-Line Deep-Hole Mode

A dedicated single blue laser line is designed for difficult recessed geometry, allowing the scanner to reach into deep holes, crevices, grooves and grills that broad scanning patterns may not capture effectively.

MetroY Pro Full-Field Structured Light

MetroY Pro adds a 62-line full-field blue structured-light mode. This mode can capture feature-rich objects without tracking markers and generates point clouds at up to 7,000,000 points per second.

Full-field scanning is especially useful when speed and marker-free capture are priorities.

MetroY Pro Automatic Turntable Scanning

MetroY Pro also supports automatic desktop scanning using the included Dual-Axis Turntable. Revo Metro controls the scanner and turntable together to automate object positioning and data capture.

Automatic Turntable Mode also enables colour scanning using the integrated 2 MP RGB camera.

High-Accuracy 3D Capture

Both MetroY models deliver up to 0.01 mm single-frame precision and 0.02 mm single-frame accuracy under controlled conditions.

Volumetric accuracy is rated at 0.02 mm + 0.04 mm × L (m), where L is the length of the scanned object. Fused point distance can reach as fine as 0.05 mm.

Small to Medium Workpieces

MetroY and MetroY Pro are designed for objects ranging from very small components to medium-sized industrial parts.

• Minimum Scan Volume: 10 × 10 × 10 mm
• Maximum Scan Volume: 1 × 1 × 1 m
• Working Distance: 200–400 mm

MetroY Capture Area

• 123 × 130 mm at 200 mm
• 290 × 260 mm at 400 mm
• 43° × 33° field of view

MetroY Pro Capture Area

• 152 × 138 mm at 200 mm
• 332 × 276 mm at 400 mm
• 49° × 38° field of view

Scan Dark and Reflective Parts

Blue laser scanning allows MetroY and MetroY Pro to capture many black, dark and reflective surfaces without coating the entire part with scanning spray.

Transparent, mirror-like and strongly specular surfaces may still require scanning spray for reliable capture.

Wireless Scanning Workflow

Both scanners include Wi-Fi 6 in addition to USB-C connectivity. Revopoint's Revo Mirror workflow allows scan data and controls from the connected PC to be streamed to a compatible mobile device, giving the operator more freedom to move around larger parts while scanning.

MetroY and MetroY Pro still rely on a connected computer for primary scan processing and visualization; they are not standalone scanners.

Real-Time Thermal Monitoring

Integrated temperature sensors monitor scanner temperature during operation. Internal cooling fans and temperature compensation help maintain consistent performance during longer scanning sessions.

Revo Metro Software Included

Revopoint's Revo Metro scanning and post-processing software is included at no additional cost for Windows and macOS.

• Point-cloud capture
• Fusion
• Meshing
• Editing and cleanup
• Scan alignment and merging
• Model export

Export formats include: PLY, OBJ, STL, ASC, 3MF, GLTF and FBX.

Choose Your Scanner

MetroY

• MetroY 3D Scanner
• USB Type-C to Type-C Cable
• Power Adapter
• Tracking Markers
• Calibration Board
• Carrying Case

MetroY Pro

• MetroY Pro 3D Scanner
• USB Type-C to Type-C Cable
• Power Adapter
• Tracking Markers
• Calibration Board
• Carrying Case
• Tripod
• Dual-Axis Turntable
• Sample Bust
• Mobile Kit (3rd Gen)

Power adapter design may vary by country or region.

Specifications

Computer Requirements

Minimum

• macOS: Apple M2 Pro with 16 GB RAM or greater
• Windows: Intel Core i7 13th Gen or AMD Ryzen 7 5800, 32 GB RAM or greater, NVIDIA GeForce RTX 3060 8 GB

Recommended

• macOS: Apple M4 Pro or better with 24 GB RAM or greater
• Windows: Intel Core i9 12th Gen or better, 64 GB RAM or greater, NVIDIA RTX 4060 8 GB or better

GPU Note: A dedicated GPU is used for acceleration in laser-line scanning modes. Revopoint currently specifies NVIDIA GPU acceleration on Windows; AMD and macOS GPUs do not currently provide laser-line GPU acceleration.

Laser Safety

MetroY: Uses a Class 1 laser projector.

MetroY Pro: Uses a Class 2M laser projector. Avoid looking directly into the laser beam at close range and do not view the beam through magnifying optical equipment such as cameras, binoculars or telescopes.

The MetroY Series is designed primarily for scanning objects. Revopoint does not recommend using MetroY or MetroY Pro to scan faces because of direct laser exposure near the eyes.
