Snapmaker U1 4-Toolhead Toolchanger 3D Printer

Multi-Colour and Multi-Material Printing Without the Usual Purge Waste

The Snapmaker U1 is a high-speed CoreXY 3D printer built around a true four-toolhead changing system. Instead of repeatedly unloading and reloading different filaments through a single nozzle, the U1 keeps four separate toolheads ready and switches the complete toolhead when another colour or material is needed.

Snapmaker's SnapSwap™ system can complete a direct toolhead change in approximately five seconds. Because each filament remains loaded in its own hot end, the U1 dramatically reduces the purging normally required by shared-nozzle multi-colour systems. In Snapmaker testing, multi-colour prints used up to 85% less waste filament than comparable shared-nozzle filament-changing systems.

Four Independent Toolheads

Four independent toolheads give the U1 much more flexibility than a conventional single-nozzle multi-colour printer.

Each toolhead can remain loaded with its own filament, allowing the printer to move quickly between colours and materials without repeatedly pulling filament through the same extrusion path.

This makes the U1 especially useful for:

• Multi-colour models
• Multi-material functional parts
• Rigid and flexible material combinations
• PVA soluble support material
• Prototypes requiring different material properties
• Batch production with frequent colour changes

The precision tool-changing mechanism uses kinematic positioning and mechanical locking to return each toolhead to a repeatable position after every swap. Snapmaker reports more than one million continuous tool swaps during laboratory durability testing without a mechanical failure.

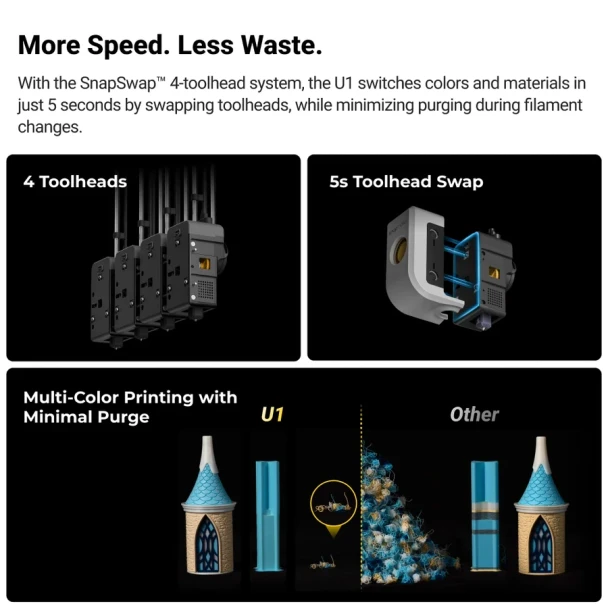

Less Purging, More Printing

Traditional single-nozzle multi-colour systems must purge the previous filament whenever the colour or material changes.

The U1 approaches the problem differently.

Rather than changing the filament inside one hot end, it changes the entire toolhead. The next nozzle can already contain the correct material and be preheated for use.

The result is:

• Faster colour and material transitions
• Much less purge material
• Lower filament consumption
• Smaller waste piles
• More practical prints with frequent colour changes
• Better separation between different materials

Snapmaker notes that a small amount of material can still be used for nozzle cleaning, prime towers and calibration, so the system is not completely waste-free.

270 × 270 × 270 mm Build Volume

A 270 × 270 × 270 mm build area gives the Snapmaker U1 enough space for larger models, multiple parts and batch printing.

The generous cubic build area combines particularly well with the four-toolhead system, allowing large multi-colour objects to be produced without sacrificing a significant portion of the build platform to a bulky filament-changing mechanism.

Up to 500 mm/s High-Speed Printing

The CoreXY motion system is designed for fast printing while keeping moving mass under control.

The U1 supports:

• Maximum toolhead speed up to 500 mm/s
• Maximum acceleration up to 20,000 mm/s²
• Maximum hot-end flow up to 32 mm³/s
• Main and auxiliary part-cooling fans

A carbon-fibre X-axis and rigid all-metal frame provide a stable foundation for high-speed motion and frequent tool changes.

Smart Automatic Calibration

Managing four independent toolheads requires accurate positioning, so Snapmaker has automated much of the calibration process.

The U1 supports:

• Mesh bed levelling
• Accelerometer and input-shaping calibration
• Automatic flow compensation
• Pressure advance calibration
• Automatic toolhead offset calibration
• Coordinate measuring calibration
• These automated routines help maintain consistent extrusion and alignment between toolheads while reducing the amount of manual calibration required from the user.
• Automatic Filament Management
• The U1 includes an automatic filament system designed to simplify loading and longer print jobs.
• Supported functions include:
• Automatic filament feeding
• Filament backup mode
• RFID filament recognition
• Filament run-out detection
• Backup mode can help keep long prints moving when compatible filament is available on another feed path.

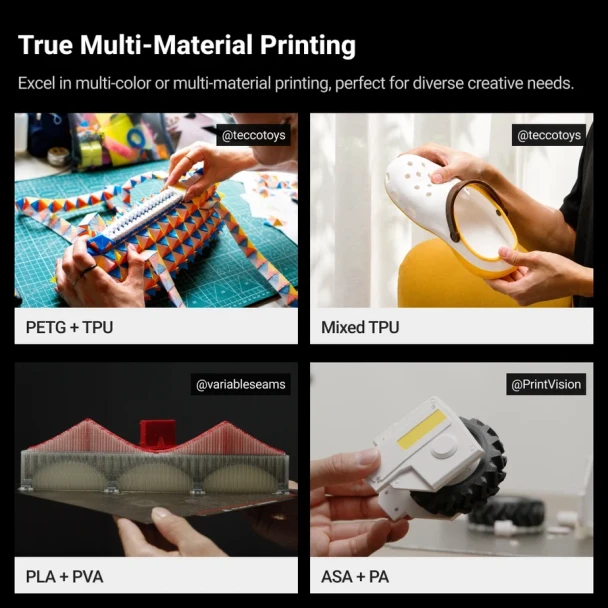

• Multi-Material Capability

Out of the box, Snapmaker lists support for:

• PLA
• PETG
• TPU
• PVA
• PCTG

With the optional U1 Top Cover, the supported material range expands to include:

• PET
• ABS
• ASA
• PA / Nylon
• PC / Polycarbonate

With both the optional Top Cover and suitable hardened-steel nozzles, the U1 can also support carbon-fibre- and glass-fibre-reinforced polymers.

• The Top Cover is an optional accessory and is not included with the standard U1 unless specifically stated otherwise.
• 300°C Hot Ends and 100°C Heated Bed
• Each standard toolhead uses a 0.4 mm stainless-steel nozzle capable of temperatures up to 300°C.
• The heated build platform reaches up to 100°C and uses a flexible steel build sheet with a PEI printing surface.
• This provides a versatile foundation for common everyday filaments while leaving room to expand into higher-temperature materials with the appropriate enclosure and nozzle configuration.

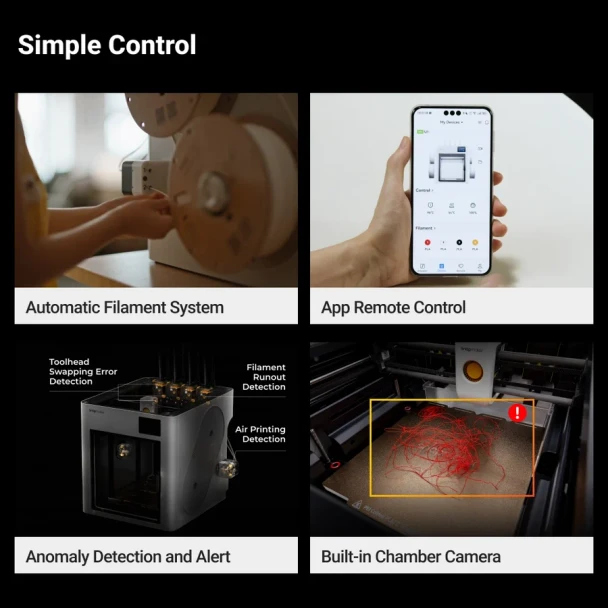

• Built-In Print Monitoring
• A 2-megapixel chamber camera provides remote viewing and print monitoring.
• The U1 also supports several automatic detection and recovery systems, including:
• Air-printing detection
• Filament run-out detection
• Power-loss recovery
• Toolhead-swap error detection
• Build-plate presence detection
• Build-plate obstruction detection
• These systems are designed to catch common problems before they ruin a long print.
• 3.5-Inch Touchscreen, Wi-Fi and Klipper
• The Snapmaker U1 includes a 3.5-inch colour touchscreen with a 320 × 480 resolution.
• Files and printer control can be handled through:
• 2.4 GHz Wi-Fi
• USB flash drive
• Snapmaker App
• Snapmaker Orca
• OrcaSlicer
• The printer firmware is based on Klipper, and Snapmaker lists desktop software support for Windows, macOS and Linux, along with Android and iOS app support.
• Key Features
• Four independent SnapSwap™ toolheads
• Approximately 5-second direct toolhead changes
• Up to 85% less filament waste in Snapmaker comparison testing
• Multi-colour and true multi-material printing
• 270 × 270 × 270 mm build volume
• CoreXY motion system
• Up to 500 mm/s toolhead speed
• Up to 20,000 mm/s² acceleration
• Up to 32 mm³/s hot-end flow
• 300°C maximum nozzle temperature
• 100°C maximum heated-bed temperature
• Automatic toolhead offset calibration
• Automatic flow and pressure-advance calibration
• Input shaping and vibration compensation
• Automatic filament feeding
• Filament backup mode
• RFID filament recognition
• 2 MP chamber camera
• Print-failure and anomaly detection
• Wi-Fi connectivity
• Klipper firmware
• Snapmaker Orca and OrcaSlicer support
• Optional Top Cover for expanded engineering-filament compatibility

Specifications

What's Included

• Snapmaker U1 3D Printer
• Textured PEI steel build sheet
• Four toolheads with hot ends
• Four SnapSpeed PLA filament samples/spools
• Four filament holders
• Two filament feeders
• Four toolhead cables
• Waste collector
• Tool and accessory box
• AC power cable
• Quick Start Guide
• Safety Guidelines
• Package contents may be revised by the manufacturer; verify the current shipment configuration when ordering.
