Duet3D

Duet Expansion Breakout Board

$45.00
account.wishlists.heading

Create Wishlist

Close
Current Stock: 2

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

This breakout board connects to second generation Duet boards ( Duet Wifi or Duet Ethernet) expansion header and is specifically designed for external drivers that take differential signals. It breaks out each of the 5 Expansion header stepper channels as follows:

Step+
Step-

Dir+
Dir-
En+
En-

It also breaks out heater 6 and 7 signals to 5V.

Note it is not compatible with older first generation versions of the Duet (0.6, 0.8.5).

Documentation

For more information see Duet3D documentation.

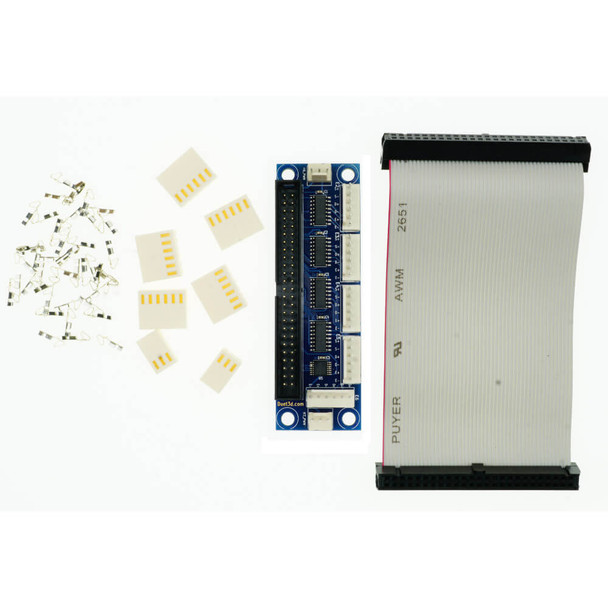

What's in the box:

  • Duet Expansion Breakout Board
  • Molex KK compatible connectors and crimps
  • 50way IDC cable

Buy a Duet Expansion Breakout Board from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!

SKU: DUET-EXP-BREAKOUT
