Spool3D CR10S-PRO and CR-10 MAX All Metal Titanium HeatBreak

$29.00
account.wishlists.heading

Create Wishlist

Close
Type *

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

Titanium heatbreak for the Creality CR-10S Pro and CR-10 MAX stock hotend.  Convert your Creality hotend to an all-metal heat break with Spool3D's titanium option.

We have 2 options for this heatbreak.  Keep using the Creality Pro/Max nozzle type that uses M6 x 0.75mm thread, or use the more common MK8 type of nozzle.

Our heat break is manufactured to tight tolerances using a special titanium alloy and a polished filament path.  We use titanium alloy Ti-6Al-5Zr-0.5Mo which is different from the industry's most common, Grade 5. Ti-6-5-0.5 has the lowest thermal conductivity among wrought titaniums.  This translates to 38% less heat transfer than Grade 5 titanium and  72% less heat transfer than typical stainless steel heat breaks and thermal tubes.

A lower thermal conductivity means a shorter transition zone where the filament changes from solid to liquid. Higher retraction values are no longer necessary.

Property Titanium Alloy 6-5-0.5 Titanium Grade 5 Stainless Steel
Thermal Conductivity (W/mK) 4.2 6.8 15
Heat Flow (W) 1.78 2.89 6.37
Density (g/cm3) 4.5 4.4 7.8
Yield Strength (MPa) 990 910 230

Thermal paste must be applied to the threads of the heat sink side:

https://spool3d.ca/thermal-grease-gd900-3-grams/

Dimensions:

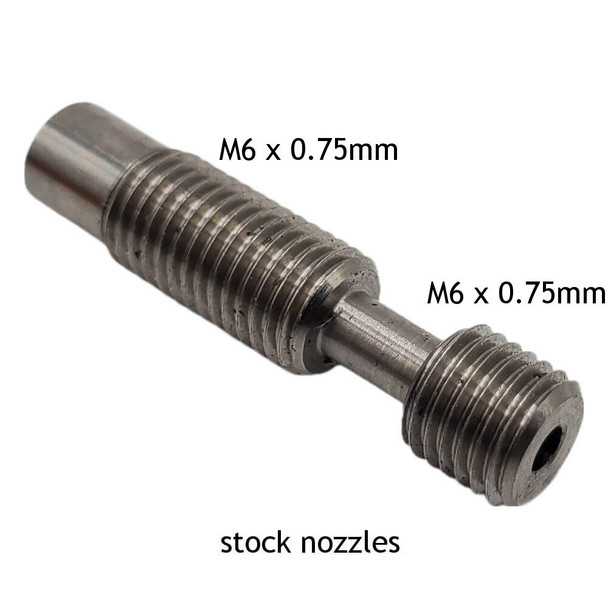

  • Thread: M6 x 0.75 on heat sink side, M6 x 0.75mm on heat block side for stock nozzles, M6 x 1.0mm on heat block side for MK8 nozzle conversion
  • Overall Length: 26.6mm
  • Filament Path Diameter: 2mm
  • 2mm ID x 4mm OD PTFE is inserted into top by 4mm

Fits:

  • Creality CR-10S Pro v1 and v2
  • Creality CR-10 MAX

Buy a Titanium Creality CR-10S Pro and CR-10 MAX heat break for your 3D Printer from Spool3D online in Canada without the surprise cost of the exchange rate!

SKU: SPOOL3D-CR10-XXXX-TITANIUM-BREAK
