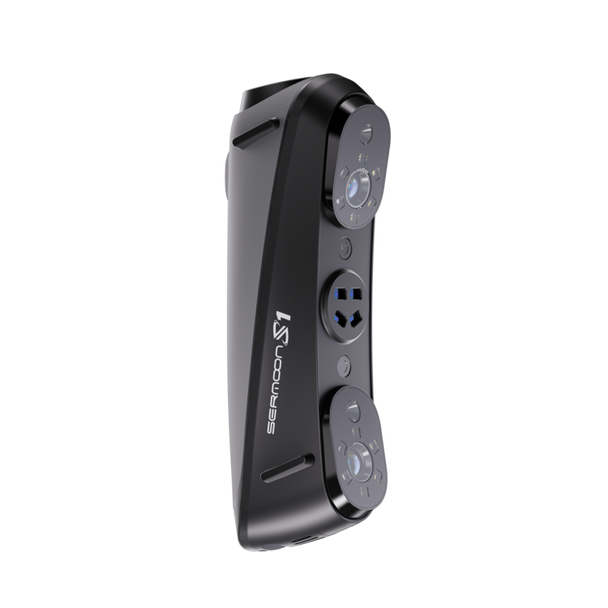

The Creality Sermoon S1 is a professional handheld 3D scanner combining one single blue laser line, seven parallel blue laser lines, 34 crossed blue laser lines and dual-range NIR structured light.

With accuracy up to 0.02mm, scanning speeds up to 90 FPS, a minimum scan volume of 5 × 5 × 5mm and support for objects up to approximately 4000 × 4000 × 4000mm, the Sermoon S1 is designed for reverse engineering, inspection, automotive work, manufacturing, art preservation and 3D printing.

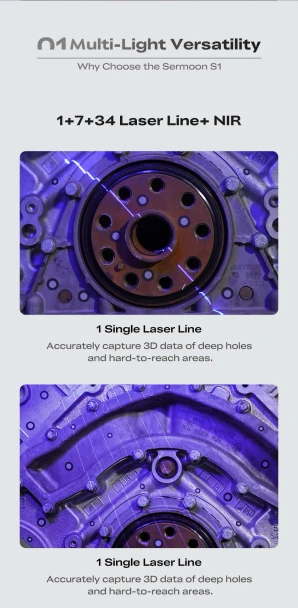

Multi-Light Scanning Versatility

The Sermoon S1 combines several scanning technologies in one portable professional scanner:

• One single blue laser line for deep holes, narrow gaps and recessed areas
• Seven parallel blue laser lines for detailed scanning
• 34 crossed blue laser lines for fast capture of larger components
• Close-range NIR structured light for medium-sized objects
• Long-range NIR structured light for people and large objects

This hybrid design allows one scanner to capture small precision components, mechanical assemblies, automotive parts, people and complete vehicles.

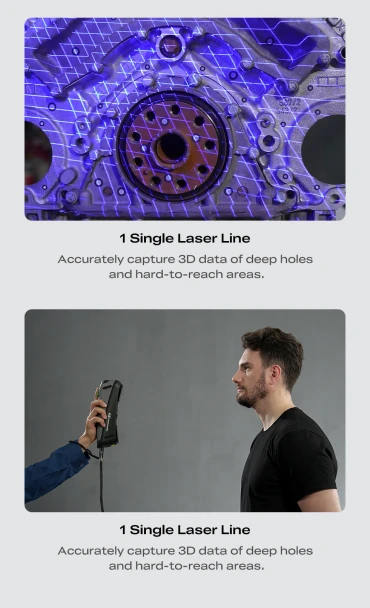

Capture Deep Holes and Recessed Features

The precise single-line blue laser and optimized optical path help the Sermoon S1 capture difficult geometry that broad scanning patterns may miss.

It is particularly useful for:

• Deep holes
• Narrow channels and gaps
• Recessed surfaces
• Internal mechanical features
• Hard-to-reach areas
• Detailed automotive and industrial components

Up to 0.02mm Accuracy

The Sermoon S1 delivers scanning accuracy up to 0.02mm, making it suitable for precision inspection, reverse engineering and detailed reproduction.

Blue laser volumetric accuracy reaches:

0.02mm + 0.08mm/m

NIR structured-light volumetric accuracy reaches:

0.075mm + 0.1mm/m

High-Speed Scanning up to 90 FPS

The Sermoon S1 captures up to 1,428,000 measurements per second using its 34 crossed blue laser lines.

Depending on the selected mode:

• Single-line and parallel-line modes: up to 90 FPS
• Cross-line scanning: up to 70 FPS
• NIR structured light: up to 30 FPS

The high capture rate helps maintain tracking while scanning complicated geometry and large objects.

Innovative Four-Lens NIR System

The NIR structured-light system combines standard stereo lenses with wide-field-of-view cameras.

Standard stereo lenses provide precise scanning, while the wide-angle lenses support fast, marker-free capture of:

• Human bodies
• Sculptures
• Furniture
• Automotive components
• Large mechanical assemblies
• Other medium-to-large objects

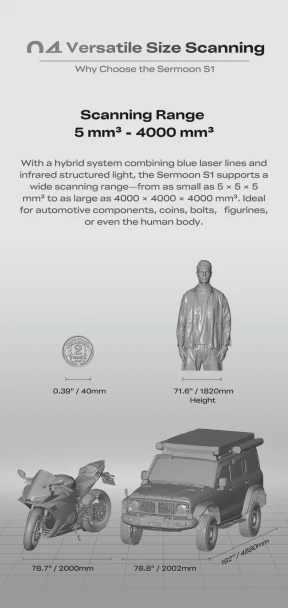

Scan Small Parts and Complete Vehicles

The hybrid blue laser and infrared system supports objects ranging from approximately 5mm to 4000mm.

The minimum blue laser scan volume is:

5 × 5 × 5mm

The minimum NIR scan volume is:

150 × 150 × 150mm

This range makes the Sermoon S1 suitable for objects such as coins, bolts, figurines, engine components, people, motorcycles and complete vehicles.

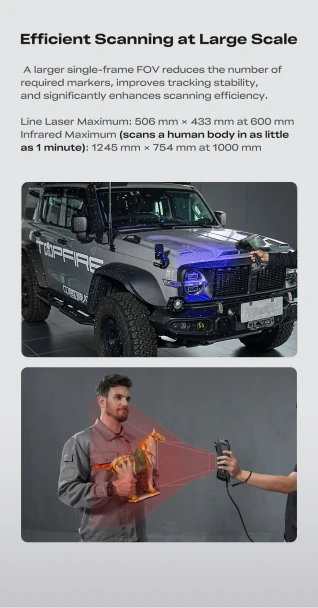

Larger Field of View

A larger single-frame field of view reduces the number of markers required and improves tracking efficiency when capturing large objects.

Maximum single-capture fields of view include:

• Blue laser: 506 × 433mm at 600mm
• Long-range infrared: 1245 × 754mm at 1000mm

Creality states that the long-range NIR mode can scan a human body in as little as approximately one minute, depending on conditions and operator technique.

Scan Black and Metallic Objects Without Spray

The blue laser system is designed to capture many black and metallic surfaces without applying scanning spray.

This can reduce preparation time when scanning:

• Black plastic components
• Engine parts
• Automotive assemblies
• Metal castings
• Dark mechanical housings
• Inspection parts that should remain clean

Highly reflective, transparent or unusually difficult surfaces may still require surface preparation.

Indoor and Outdoor Scanning

The Sermoon S1 is designed for operation in bright outdoor conditions as well as controlled indoor environments.

Maximum stated ambient-light levels include:

• Single blue laser line: below 100,000 lux
• 34 crossed blue laser lines: below 100,000 lux
• Seven parallel blue laser lines: below 50,000 lux
• NIR structured light: below 30,000 lux

Intelligent Scan Stabilization

An AI-driven temperature-compensation algorithm and thermal-management system help maintain stable output during extended scanning sessions.

One-shot 3D imaging technology is intended to improve tracking stability and reduce:

• Dropped frames
• Alignment errors
• Stitching errors caused by movement
• Accuracy drift during prolonged operation

A 2MP RGB camera and dual-colour texture lighting support high-definition colour reproduction.

Expandable Wireless Scanning

The Sermoon S1 supports wireless operation when paired with the optional Creality Scan Bridge accessory.

The Scan Bridge provides a handheld grip and wireless connection for greater freedom when moving around vehicles, sculptures and other large objects.

The Scan Bridge is sold separately.

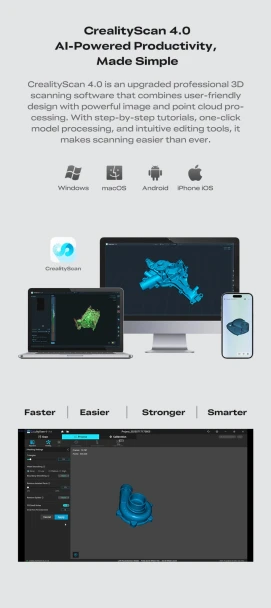

CrealityScan 4.0 Software

CrealityScan 4.0 combines guided workflows with image and point-cloud processing tools.

Software features include:

• Step-by-step scanning tutorials
• One-click model processing
• Point-cloud alignment
• Mesh generation
• Mesh smoothing
• Isolated-part removal
• Spike removal
• Hole filling
• Model editing
• Calibration tools
• Scan-project management

CrealityScan supports Windows and macOS. Android and iOS operation requires compatible wireless scanning accessories.

Professional Software Compatibility

Sermoon S1 scan data can be transferred into mainstream reverse-engineering, inspection, CAD, modelling and 3D-printing software, including:

• QuickSurface
• Geomagic Design X
• Geomagic Wrap
• Siemens NX
• PolyWorks
• CATIA
• Creo
• SolidWorks
• Autodesk Fusion
• Blender
• Rhino
• Maya
• 3ds Max
• Cinema 4D
• ZBrush
• Meshmixer
• MeshLab
• Mudbox
• Unreal Engine

Applications

The Creality Sermoon S1 is suitable for:

• Automotive scanning
• Reverse engineering
• Dimensional inspection
• Manufacturing
• Product development
• Replacement-part reproduction
• Quality control
• Human-body scanning
• Art and antique preservation
• CAD modelling
• Digital archiving
• 3D printing

Technical Specifications

Scanning Rates

Working Distances

Single-Capture Range

Blue Laser

• 205 × 147mm at 200mm
• 293 × 217mm at 300mm
• 355 × 289mm at 400mm
• 417 × 361mm at 500mm
• 506 × 433mm at 600mm

Close-Range NIR

• 293 × 217mm at 300mm
• 417 × 361mm at 500mm

Long-Range NIR

• 689 × 375mm at 500mm
• 1245 × 754mm at 1000mm

Alignment Modes

Laser Classification

Recommended Computer Configuration

Windows

• Windows 10 or Windows 11, 64-bit
• Intel Core i7 10th generation or newer
• NVIDIA graphics card
• At least 8GB VRAM
• At least 32GB RAM

macOS

• Apple M1, M2, M3 or M4 processor
• At least 16GB unified memory

Package Contents

• Creality Sermoon S1 3D scanner
• USB 3.0 Type-C to Type-A data cable
• Power supply and plug adapters
• Ten sheets of 6mm reflective markers
• Ten sheets of 3mm reflective markers
• USB Type-C adapter
• Lanyard
• Cleaning cloth
• Quick-start guide
• Certificate of conformity
• Warranty card
• High-precision glass calibration plate
• Waterproof protective carrying case
