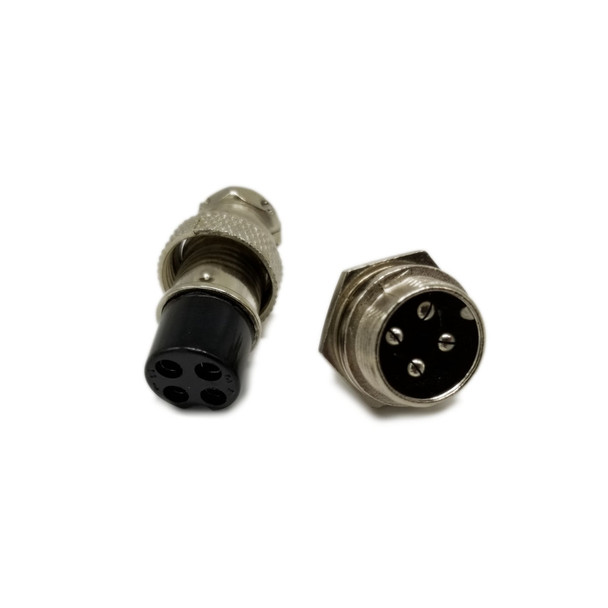

Aviation Plug and Socket

$5.00 - $6.00
account.wishlists.heading

Create Wishlist

Close
# of Pins *

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

  • Type : GX16
  • Size : 4pin or 8pin
  • Environment temperature : -50~+70C°
  • Relative humidity : When temperature is +40C° achieve 98%
  • Atmospheric pressure : Reach 4,4kpa
  • Vibration : vibration frequency 10~100Hz,acceleration 100m/s2
  • Shock : Frequency 60~80 times/min,acceleration 250m/s2
  • Centrifuge : Acceleration 250m/s2
  • Nominal voltage : 2pin,3pin,4pin:400V.5pin,6pin,7pin,8pin,9pin,10pin:250V
  • Rated current : 5A
  • Contact resistance : not more than 0.005Ω
  • Insulation resistance : Normal conditions ≥1000MΩ,temperature after test ≥20MΩ
  • Test voltage : (50Hz,virtual value)2pin,3pin,4pin 1500V,5pin,7pin 1200V,contact temperature after test:2pin,3pin,4pin 1200V,5pin,7pin 1000V
  • Separation force : One foot is 1-3N,total separation force one foot separation force maximum sumx1.5
  • Temperature rise : No more than ambient temperature +50C°

Buy an aviation connector from #Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!

SKU: AVIATION-##PIN
