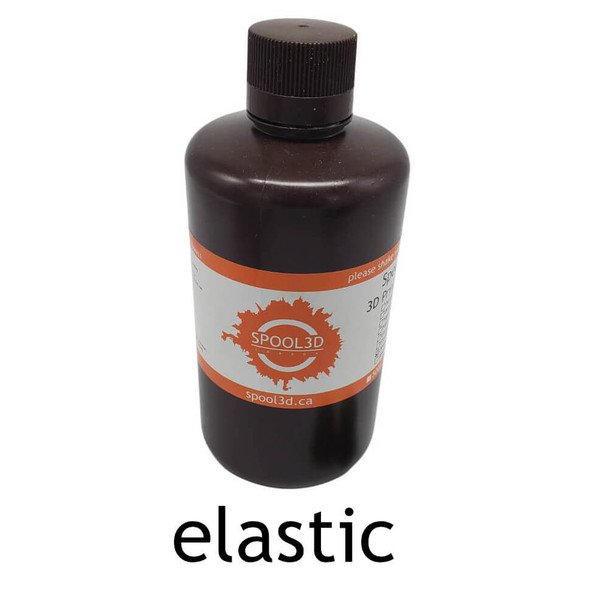

Spool3D Elastic Resin

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

Elastic 3d printer resin has a soft property allowing it to bend or compress the prints, with a high elastic property.

• Translucent Colour
• Great performance
• Smooth surface
• Wavelength: 405nm
• Compatible with All LCD 3D Printers with 405nm
• Avoid lighting - store in provided container in a cool dry place
• Avoid direct skin contact; wash with water after touching the resin

The exposure time should be adjusted according to the projection light type and power of the printer.

For best results, please allow any bubbles in the resin to dissipate after pouring and before printing.

This resin requires longer than normal exposure times.

• Monochrome LCD (Anycubic Mono, Creality Halot One, Elegoo MARS 3, etc.)
• Set bottom layer 25-30s and each layer exposure time 8-12s for layer thickness at 50 μm.

When printing with ordinary FEP/PFA film, the recommended lifting distance is as below:

• <7'' screen size, lifting distance: 8-10mm
• 7-10”screen size, lifting distance:10-12mm
• 10.1”screen size, lifting distance:12-14mm
• 13.3”screen size, lifting distance:15-17mm
• 15” screen size, lifting distance:16-18mm

Parameters (+/- 10%):

• Resin Type: Elastic
• Density (g/mL): 1.05 - 1.25
• Viscosity (MPa.S): 550-750
• Shore Hardness: 40-50A
• Tensile Strength: 0.6 MPa
• Tensile Modulus: 3.3 MPa
• Elongation @ break: 136%
• Flexural Modulus: -
• Flexural Strength: -
• Maximum Pulling Strength: 27N
• Maximum Force Point of Deformation: 76mm
• Notched Impact Strength: -

Package contents:

• 500g Bottle of Elastic Resin - Translucent

Buy Spool3D Elastic Resin Printer Photopolymer Resin from Spool3D online in Canada without the surprise cost of the exchange rate!
