Formlabs

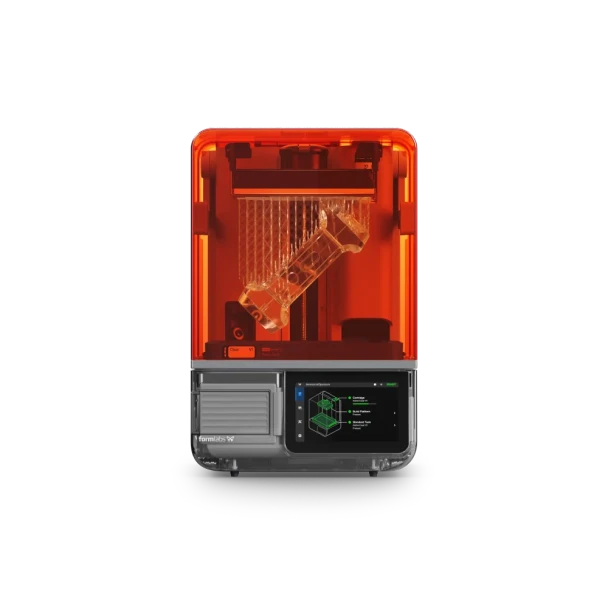

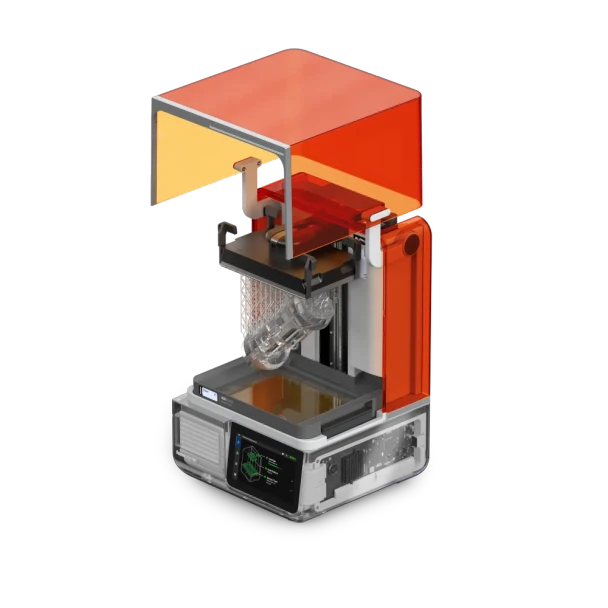

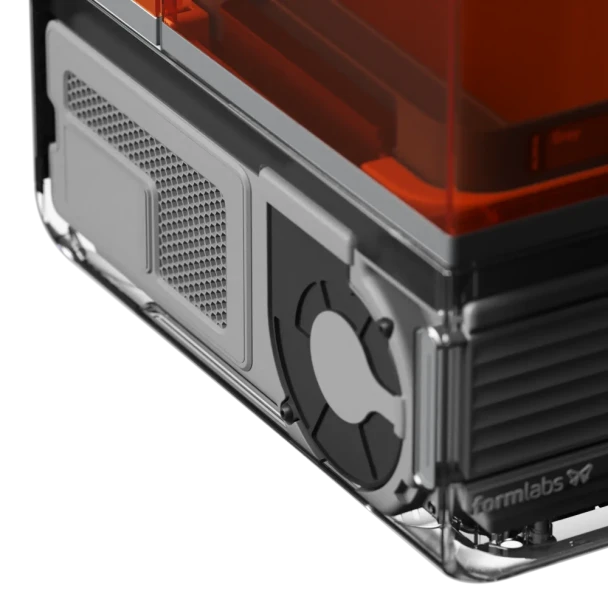

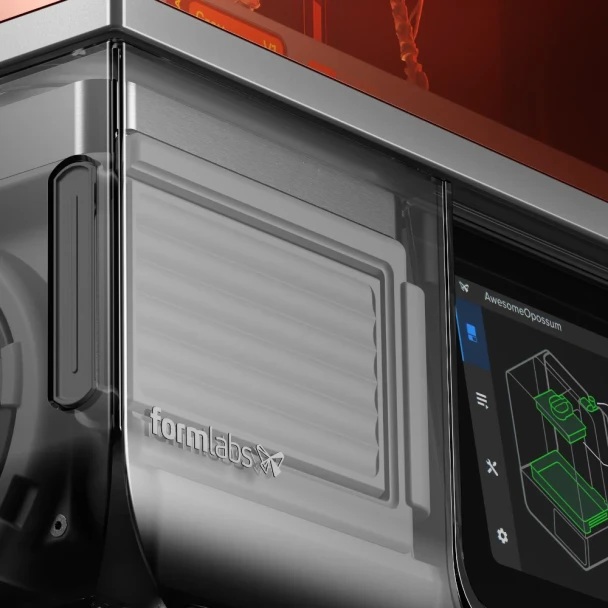

Formlabs Form Studio 1 Basic Founders Edition Resin 3D Printer – Graphite

(No reviews yet) Write a Review
SKU:
FST1
MPN:
FST1-BASIC-US
  • Formlabs Form Studio 1 Founders Edition Graphite resin 3D printer available in Basic and Flex configurations
  • Formlabs Form Studio 1 Founders Edition Graphite resin 3D printer available in Basic and Flex configurations
  • Formlabs Form Studio 1 Founders Edition Graphite resin 3D printer available in Basic and Flex configurations
  • Formlabs Form Studio 1 Founders Edition Graphite resin 3D printer available in Basic and Flex configurations
  • Formlabs Form Studio 1 Founders Edition Graphite resin 3D printer available in Basic and Flex configurations

This item is available for backorder. Please contact us for lead times.

$999.00 - $1,089.00

Description

Formlabs • Founders Edition

Form Studio 1 Founders Edition – Graphite

Choose the Basic or Flex configuration of the Formlabs Form Studio 1 Founders Edition, both available in Graphite. This professional-grade resin 3D printer combines Low Force Display (LFD) technology, fine detail and a streamlined workflow. The difference is the build platform: Basic uses the standard aluminum platform; Flex includes the quick-release Build Platform Flex for easy, tool-free part removal.

COMPLETE YOUR RESIN PRINTING SETUP

Don't Forget Your Alpha Resin!

Get started with Formlabs Standard Alpha V1 Resin, specially developed for the Form Studio 1. Available in Grey, White, Black and Clear. Resin is sold separately.

SHOP FORMLABS ALPHA RESIN →
Performance

Professional detail, practical speed

35 µm XY resolutionCapture fine details and smooth surfaces.
5.9 L build volumePrint within a 200 × 125 × 235 mm workspace.
Fast resin printingPrint most parts in under two hours; up to 130 mm/hour with Alpha Fast Resin, depending on model and settings.
Guided workflowAutomatic resin handling, touchscreen controls and integrated monitoring.
Choose your configuration

Basic or Flex – both in Graphite

Select Basic or Flex using the Configuration option above the Add to Cart button. Both versions use the same Form Studio 1 print engine, build volume and compatible material ecosystem.

Standard platform

Basic – Graphite

A straightforward introduction to professional resin printing.

Package highlights
  • Form Studio 1 printer – Graphite
  • Standard aluminum Build Platform
  • Form Studio 1 Resin Tank
  • Printer accessories box

SKU: FST1-BASIC-US

Quick-release platform

Flex – Graphite

Faster, tool-free part removal for frequent printing.

Package highlights
  • Form Studio 1 printer – Graphite
  • Build Platform Flex with Quick Release Technology
  • Form Studio 1 Resin Tank
  • Printer accessories box

SKU: FST1-FLEX-US

The selected configuration determines which build platform is supplied. Resin and washing/curing equipment are sold separately unless explicitly listed in the selected product offer. Any Founders Edition promotional extras are subject to the confirmed regional offer.

Technical details

Form Studio 1 specifications

Technology
Low Force Display (LFD) masked stereolithography (MSLA)
Build volume
200 × 125 × 235 mm (5.9 L)
XY pixel size
35 µm
Layer thickness
25–250 µm, material dependent
Maximum print speed
Up to 130 mm/hour with Alpha Fast Resin
Light source
405 nm, 28-LED backlight and lens array
Display & monitoring
7-inch touchscreen; integrated camera
Connectivity
Wi-Fi, Ethernet and USB-C 2.0
Software
Formlabs PreForm, Dashboard and Form Mobile
Materials
Formlabs compatible resins; eligible third-party materials with Open Material Mode and Resin Tank Pro
Materials & finishing

Make the most of your printer

Choose from the Form Studio 1 Alpha Resin family, including Alpha Grey, White, Black, Clear, Model and Fast. Resin Tank Pro is required for certain engineering or third-party resins that use Open Material Mode. Third-party materials require manual settings and handling.

Resin prints require washing and typically post-curing. Pair your printer with Form Studio Wash+Cure for convenient post-processing. The Formlabs VOC Extractor, used with Form Studio 1 and Alpha Resins, enables the certified low-emissions setup described by Formlabs; certification is not a blanket claim for every printer/material combination.

Explore the full Form Studio 1 ecosystem

Compare printer configurations, compatible materials and accessories in the Spool3D Form Studio 1 guide.
