PEEK-300

THE LEADER OF ULTRA HIGH PERFORMANCE 3D PRINTERS

• Ultra high temp. nozzle/bed
• Advanced Thermal System
• Direct Annealing System
• Water cooling/ Heat isolation system
• Medical/Industry application

Direct Annealing System

Direct Annealing System (DAS), the world's first and extraordinary technology by CreatBot. Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. (The technology is patent-protected and available by CreatBot only)

DAS annealing process features :

1. Instantaneously: Finished during printing process, no need secondary treatment in oven.
2. Completely: The annealing process point to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallized or will deform in oven.
3. Controllable: The surrounding temperature can be adjusted to 0-200 °C. the different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.

Smart Auto-rising dual extruders 480 ℃

The PEEK-300 is equipped with CreatBot new technology smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature up to 480°C. You can print any 3D printer materials in the world. We can say it is best choice of polymer materials.

Hotbed 200 ℃

Common but necessary. Base of printing big models with no warping.

Hot Chamber 120°C

Outstanding and important. The protector of no cracking printing.

Cooling System

The Cooling system is one of the important parts to constitute the whole thermal system. It is made of:

1. Liquid cooling. Circulating liquid can be used effectively for a long time.
2. Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.

Printing

Build Volume Single Extrusion: 300x300x400 mm
Dual Extrusion: 240x300x400 mm
Filament Diameter: 1.75mm
Number of Nozzles: Dual Extruder
Print Speed: up to 180mm/s
Nozzle Diameter: 0.4mm (other sizes optional)

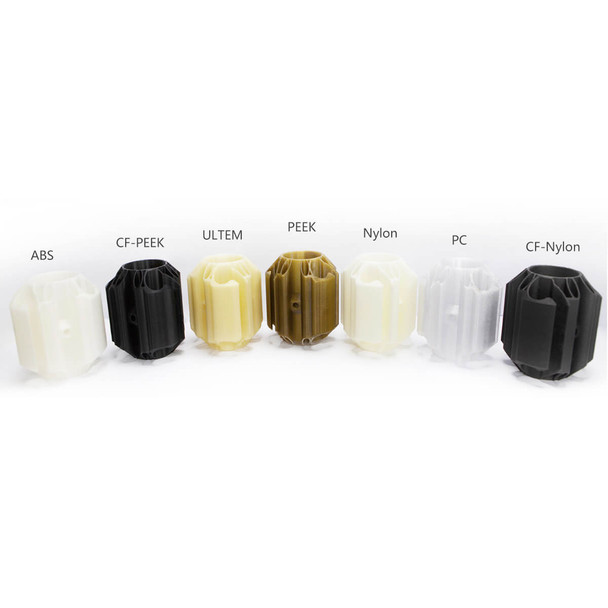

Filament Compatibility Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF,TPU, Carbon Fiber
High temperature Material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM)；
Ultra-performance material: PEEK,CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc.

Software
Software: Creatware, Simplify3D, Cura, Slic3r
Operating Systems: Windows all, macOS
Print File Type: STL, OBJ, AMF, Gcode

Special Function

• Outage Restored: Save data when power is off
• Filament Detection: Pause printing when filament runs out
• Direct Annealing System (DAS): Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.
• Heat insulation: Triple heat insulation
• Emergency stop switch: Support emergency stop
• High temperature accessories: High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.

Temperature
Nozzle Max. Temperature: 480℃
Chamber Temperature: 120℃
Platform Max. Temperature: 200℃
Direct Annealing Temperature: 0~400℃

Mechanical
Cooling: Air pump cooling & water cooling
Platform: PCB aluminum + PEEK print board
Positioning Precision: X Y axis 0.0127mm, Z axis 0.00125mm
Extruder: Direct Drive
Machine Construction: Fully enclosed hot chamber
Bed Leveling: Manually/Automatic

Electrical
Input Power: 2 x 200V~240V, 20A
Rated Power: 4600W
Screen: 4.3'' full color touch screen, multi-language
Print Method: USB Connectivity/USB Disk

Size & Weight
Machine Size: 720x700x941.5 mm
G.W: 110 kg
Packing Size: 820x720x1080mm
N.W: 145 kg

Buy a Creatbot PEEK-300 Gen2 3D Printer from Spool3D online in Canada without the surprise cost of the exchange rate!
