Bondtech LGX™ Mounting Accessories

(No reviews yet) Write a Review
SKU:
BONDTECH-LGX-MOUNT-ACC-15108
UPC:
7350011413973
MPN:
SKU: 15108
  • Bondtech LGX™ Mounting Accessories - 3D Printer Spare Parts
  • Bondtech LGX™ Mounting Accessories - 3D Printer Spare Parts
  • Bondtech LGX™ Mounting Accessories - 3D Printer Spare Parts
$6.00

Description

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

Extend the possibilities of your LGX™ with this mounting hardware set.

  • Mount a plate in between the extruder and the stepper motor with the longer screws;

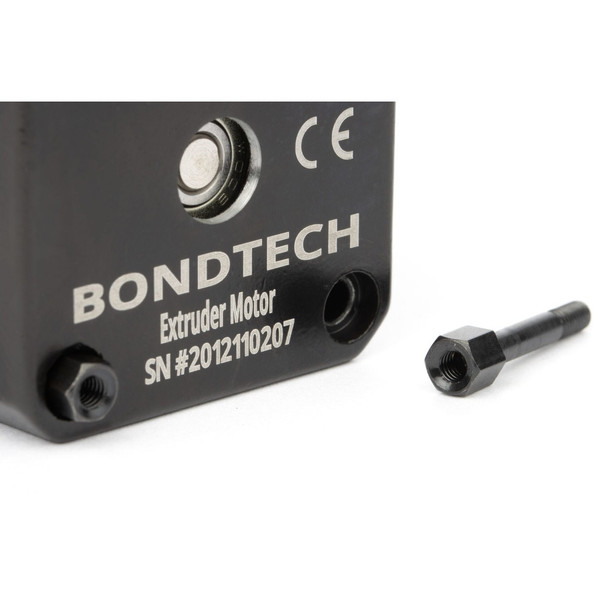

  • Extend the mounting possibilities with the motor studs (up to 4 additional mounting points);
  • Improve the Direct Drive performance with the PTFE tube (Sized for Copperhead).

M3x30 Low Head Screws recommendations:
Replace the M3x27mm screws on the 3 positions highlighted in the picture.
The M3x30 screws are compatible with mounting plates from 1 and up to 3mm thickness.
If mounting plate is 1mm thick, or thinner, use the default screws M3x27.

PFTE tube lengths:
Copperhead screw mount : 30mm
New Mosquito and Mosquito Magnum : 11 mm
Old Mosquito and Mosquito Magnum : 10 mm

PFTE cut recommendations:
PTFE tube should be cut straight on both ends.
Slight chamfer inside is recommended, but not mandatory.

Buy Bondtech LGX™ Mounting Accessories from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
