BIGTREETECH BTT EBB SB2209 CAN for Voron StealthBurner
- SKU:
- BTT-SB-2209
Description
Free shipping in Canada for orders over $140 before tax.

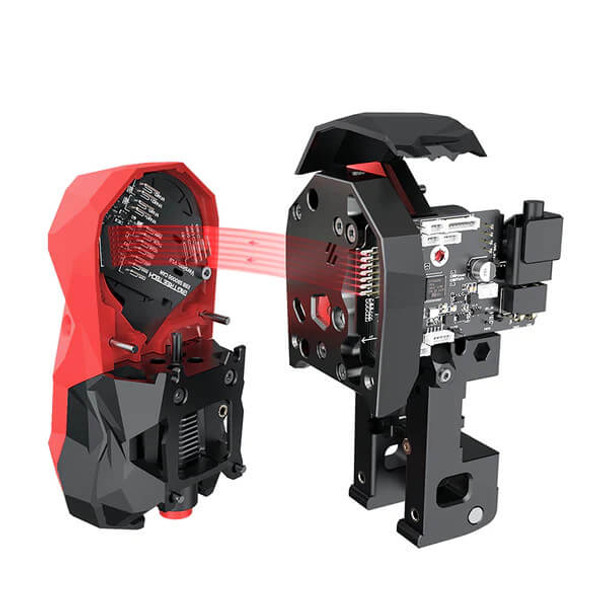

Drop-in Installation
Careful header spacing and location means that wiring will be a breeze. No need to solder anything thanks to the onboard header pins.
Robust and Reliable
Using high-performance, 32-bit, 64 MHz MCUs from the industry-leading STM ensures rock-solid performance with CAN bus signaling that can support higher data rates over longer distances without errors.
EBB SB2209 Comparison:
| PRODUCT | EBB SB2209 CAN | EBB SB2209 CAN (RP2040) | EBB SB22090 USB |
| Connector | GH1.25 | PH2.0 | PH2.0 |
| Communication | CAN (Hardware) | CAN (Software) | USB |
| Onboard Driver | TMC2209 | TMC2209 | TMC2209 |
| Driver Mode | UART | UART | UART |
| MCU | STM32G0B1CBT6 @ 64MHz | RP2040 @ 133MHz | RP2040 @ 133MHz |
| Input Voltage | DC 12-24V, 9A | DC 12-24V, 9A | DC 12-24V, 9A |
| Logic Voltage | DC 3.3V | DC 3.3V | DC 3.3V |
| Heater Connection | E0, MAX 5A | E0, MAX 6A | E0, MAX 6A |
| Accelerometer | ADXL345 | ADXL345 | LIS2DW |
| Fan Port | 2x PWM, 1 x 4 pin | 2x PWM, 1 x 4 pin | 2x PWM, 1 x 4 pin |
| Voltage Selection for 2-pin fans | Individually Selectable | Same Voltage | Same Voltage |
| Fan Port Current | 1A Cont, 1.5A Instant | 1A Cont, 1.5A Instant | 1A Cont, 1.5A Instant |
| Stepper Motor Interface | EM | E0 | E0 |
| Temp Sensor Interface |
1 x 100k NTC or PT1000(TH0) 1 x PT100/PT1000 selectable |
1 x 100k NTC(TH0) 1 x PT100/PT1000 selectable |
1 x 100k NTC (2.2k pull-up resistor), supports PT1000 |
| DCDC 5V Output | 1A Max | 1A Max | 1A Max |
| Expansion Port | Endstop, ABL, RGB, PT100/PT1000, USB, CAN, SPI | Endstop, ABL, RGB, PT100/PT1000, USB, CAN | Endstop, Probe, RGB, 3 x USB2.0, I2C, IND or FAN, 5V OUT |
Documentation:
What's in the box (all):

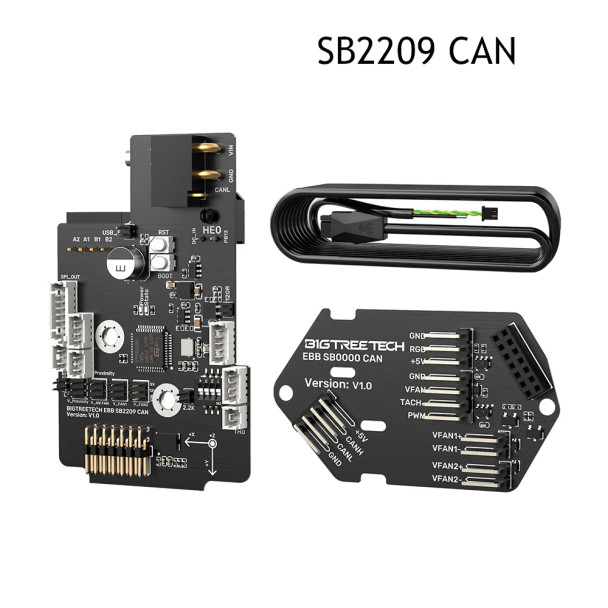

- EBB SB2209 Board Set
- connectors and terminals bag
- Zip Ties
- Screws
- Stickers
- BTT Duck
What's in the Box (SB2209 CAN & SB2209 CAN (RP2040)
- 1 x 3m CAN Bus Cable
What's in the Box (SB2209 USB)
- 1 x 3m Dual XT30 Shielded Cable
- 1 x 30cm USB-A to USB-C Cable
- 1 x 20cm tinned power wire
Buy a BTT EBB SB2209 for Voron StealthBurner from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
1 Review
-
Must-have upgrade for the Stealthburner
Absolute must-have upgrade as it makes wiring an absolute cakewalk and simplifies a lot of the assembly and setup. Comes with more IO than you could ever reasonably need and works directly with Klipper, removing the necessity for a lot of IO on your mainboard that could potentially be freed up for some other purpose.
