Arduino MEGA 2560 Clone

(1 review) Write a Review
SKU:
MEGA-2560-R3
$29.00

Description

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

Please read available online resources for connections. We are not responsible for board damage that is caused by being misinformed.

The MEGA 2560 is designed for more complex projects. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities.

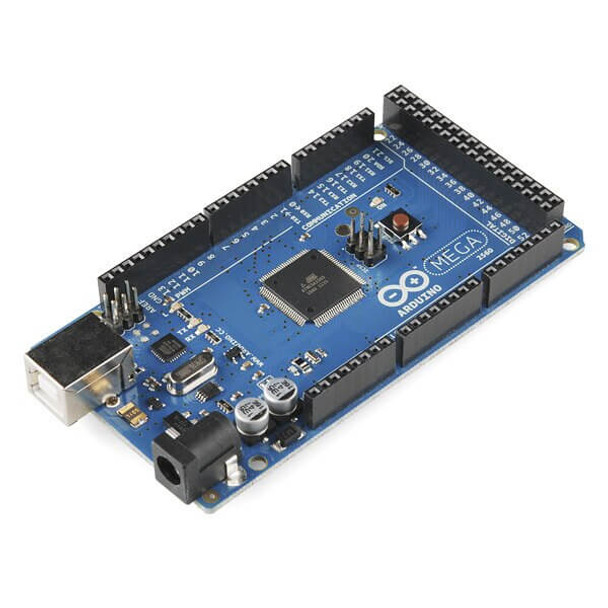

The Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
Technical specs
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
Length 101.52 mm
Width 53.3 mm
Weight 37 g

Package Contents:

  • Mega 2560 R3 Clone
  • USB cable

Buy a Mega 2560 R3 clone from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!

View AllClose

1 Review

  • 4

    Good clone

    Posted by Mike on April 19, 2017

    Needed one fast as I shorted mine out doing something stupid. This one worked well but I did need to have the CH340 driver installed on my PC as it uses a different USB to serial chip than the genuine article. Printer is running fine again though after flashing my firmware on it.
