NEMA23 Stepper Motor - 76mm, 1.90Nm
- SKU:
- NEMA23-76-1900
Description
Free shipping in Canada for orders over $140 before tax. (via Canada Post)

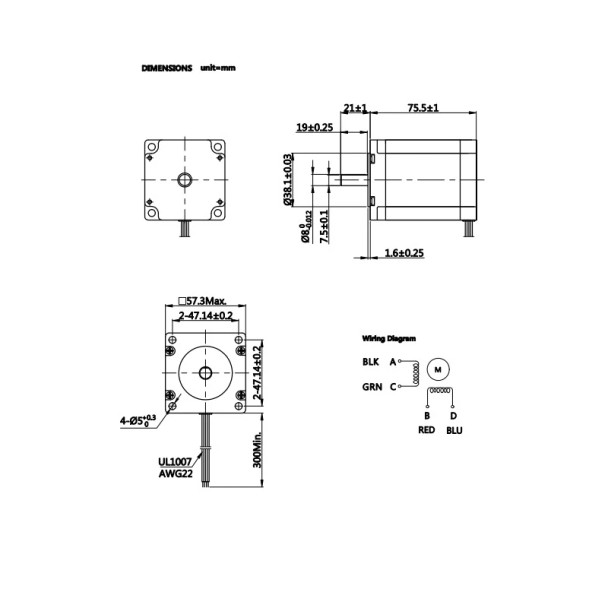

- 57mm x 57mm x 56mm (L x W x H)
- Phase number: 2 phases
- Step Angle: 1.8 °
- Rated voltage: 3.08 V DC
- Rated current: 2.8 A
- Holding torque: 1.9 N.m
- Phase resistance: 1.1 Ω ± 10 %(20 °C)
- Phase inductance: 3.6 mH ± 20 %(1KHz 1V RMS)
- Insulation Class: B(130 °C)
- 8 mm diameter shaft
- 21mm long D-shaft
- Weight: 1.1kg
Package Contents:
- NEMA23 stepper motor (LKD57HS76-2804-14)
Buy a 76mm NEMA23 stepper motor from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
