NEMA23 Stepper Motor - 56mm, 1.24Nm
- SKU:
- NEMA23-56-1240
Description
Free shipping in Canada for orders over $140 before tax. (via Canada Post)

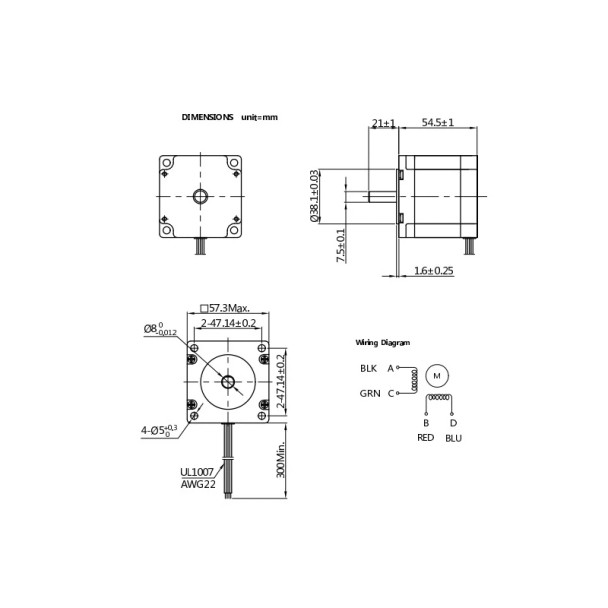

- 57mm x 57mm x 56mm (L x W x H)
- Phase number: 2 phases
- Step Angle: 1.8 °
- Rated voltage: 2.5 V DC
- Rated current: 2.8 A
- Holding torque: 1.24 N.m
- Phase resistance: 0.9 Ω ± 10 %(20 °C)
- Phase inductance: 2.5 mH ± 20 %(1KHz 1V RMS)
- Insulation Class: B(130 °C)
- 8 mm diameter shaft
- 21mm long D-shaft
- Weight: 0.7kg
Package Contents:
- NEMA23 stepper motor (LKD57HS56-2804-13)
Buy a 56mm NEMA23 stepper motor from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
