NEMA23 Stepper Motor - 41mm, 0.55Nm

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

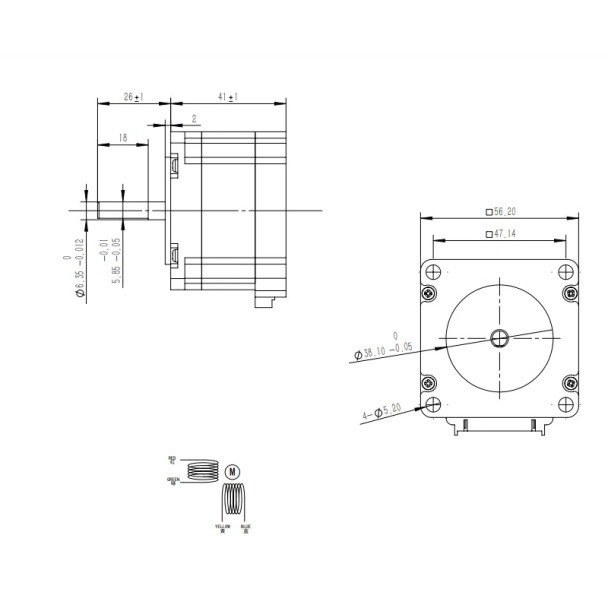

• 57mm x 57mm x 41mm (L x W x H)
• Phase number: 2 phases
• Step Angle: 1.8 °
• Rated voltage: 2.0 V DC
• Rated current: 2.8 A
• Holding torque: 0.55 N.m Min(two-phase power)
• Phase resistance: 0.7 Ω ± 10 %(20 °C)
• Phase inductance: 1.4 mH ± 20 %(1KHz 1V RMS)
• Insulation resistance: 100MΩ Min. (DC 500V)
• Insulation Class: B(130 °C)
• 6.35mm diameter shaft
• 24mm long D-shaft

Package Contents:

• NEMA23 stepper motor (Hanpose 23HS4128-6.35)

Buy a 41mm NEMA23 stepper motor from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
