Micro Swiss MK10 All Metal Hotend Kit

$49.00
account.wishlists.heading

Create Wishlist

Close
Current Stock: 10

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

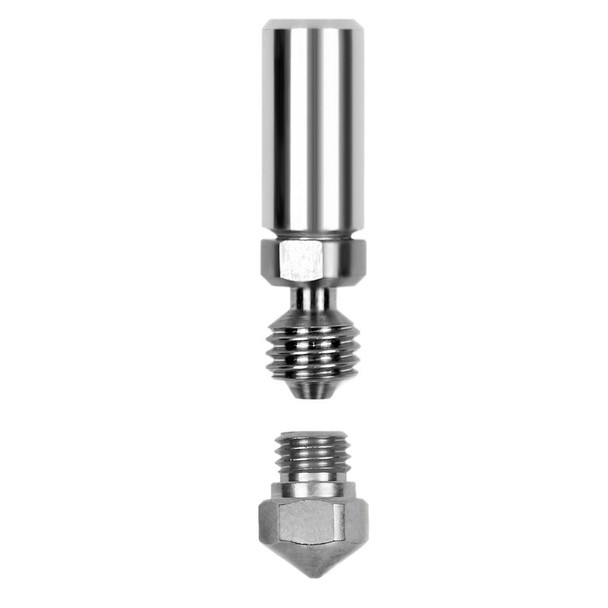

This is an all metal hotend upgrade kit for MK10 style extruders. The thermal barrier tube is made from 2 different materials. The lower thermal break is made from stainless steel, and the colder upper part is made from aluminum. Stainless steel was used for the thermal break because it offers low thermal conductivity and aluminum was used for the upper portion because it has a lot better thermal conductivity, to carry away any heat from the filament. The all metal hotend will let you print at much higher temperature then possible with the original PTFE lined one. Another benefit of an all metal hotend design is more consistent melt chamber control. During slow extrusion rate, in a PTFE lined hotend, the transition zone from solid to molten plastic tends to creep upward creating more stringy prints. With the all metal design a transition zone is always constant, being located right at the heat break. With a fast extrusion rate, the PTFE tube doesn't have enough thermal conductivity to properly melt all the plastic coming out. On MK10 extruders that limitation happens around 60 mm/s, depending on nozzle size. The all metal hotend solves this problem, plastic is surrounded by a thermally conductive nozzle throughout its length.

Kit includes:

  • 1 Plated brass,  Wear Resistant Nozzle
  • 1 Thermal tube
  • 1 Thermal compound
Fits:
  • FlashForge Creator Pro
  • FlashForge Creator X
  • FlashForge Dreamer
  • QIDI TECH I
  • Dremel Idea Builder
  • ​PowerSpec 3D Pro​
  • PowerSpec 3D X
  • PowerSpec Ultra 3D Printer
  • ​Wanhao Duplicator 4S
  • Wanhao Duplicator 4X
  • Wanhao Duplicator 9 (D9)
  • Wanhao i3
  • Monoprice Maker Select 3D Printer v2
  • Cocoon Create 3D Print

Package contents:

  • 1 Micro Swiss MK10 All Metal Hotend Kit (0.4mm size)

Buy a Micro Swiss MK10 all metal hotend kit in Canada without the surprise cost of the exchange rate!

SKU: MS-MKIT-MK10040

Reviews

5 out of 5 (based on 3 ratings)
leave a review

Good Quality

5/5
Installation was straight forward on my FF Dreamer. Replaced both hotend to ease alignment. First print after were perfect.
Posted by Louis Demers, March 13, 2017

Clean install with the help of YouTube

5/5
Works great install was straight forward with the help of YouTube. No instructions but all parts needed was included.
Posted by Phil, December 19, 2016

Easy to install

5/5
install was very easy on my Wanhao I3
Posted by Will, November 14, 2016
