Creality

Creality RaptorX 3D Scanner

(No reviews yet) Write a Review
SKU:
CREALITY-RAPTORX
UPC:
6971636405283
MPN:
4008050054
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
  • Creality RaptorX 3D Scanner
$5,579.00

Description

Free shipping in Canada for orders over $140 before tax.

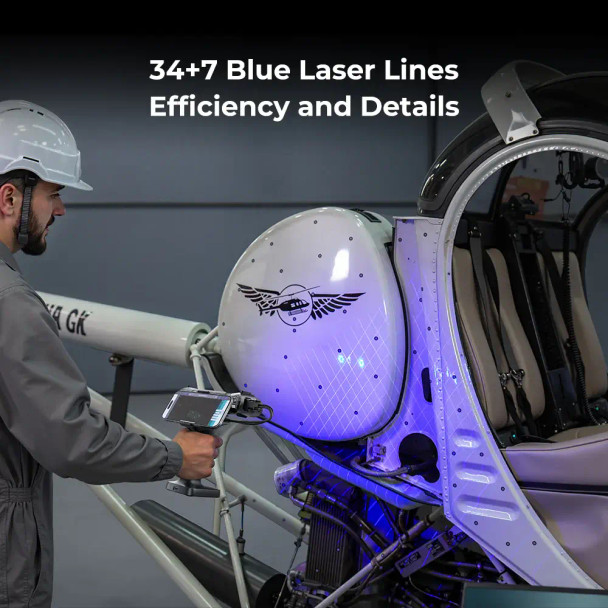

  •   World's 1st Wireless Hybrid Blue Laser & NIR Scanner
  •   34+7 Blue Laser Lines
  •   Portable Wireless Scanner
  •   Metrology-grade Accuracy up to 0.02mm
  •   Objects between 5-4000mm
  •   Fast Wi-Fi 6 Data Transmission
  •   For detailed information about the scanner, visit the official free knowledge-sharing platform: Creality Wiki.
  •   Discover endless creativity and connect with amazing users. Join our official community today to explore more!: Creality 3D Scanner Official Group.

34 cross laser lines for scanning medium to large objects quickly , with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning , improves both the efficiency and details of 3D Scanning.

Easily and Quickly Scan Medium to Large Objects with reliable accuracy. Scanning a whole car in One Go.

The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

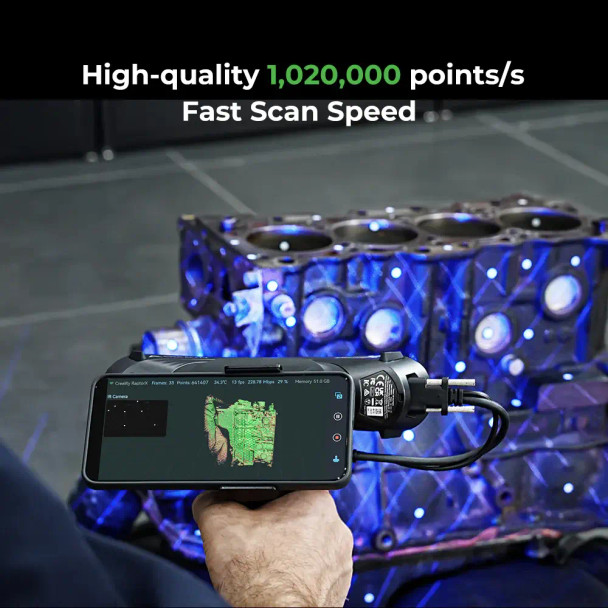

High-quality 1,020,000 points/s Fast Scan Speed

The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.

7 Laser Lines for Partial HD Scanning

Each laser line is as fine as 0.1mm, capturing sharper edges and richer details . Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.

Volumetric Accuracy

0.02mm+0.06mm/m

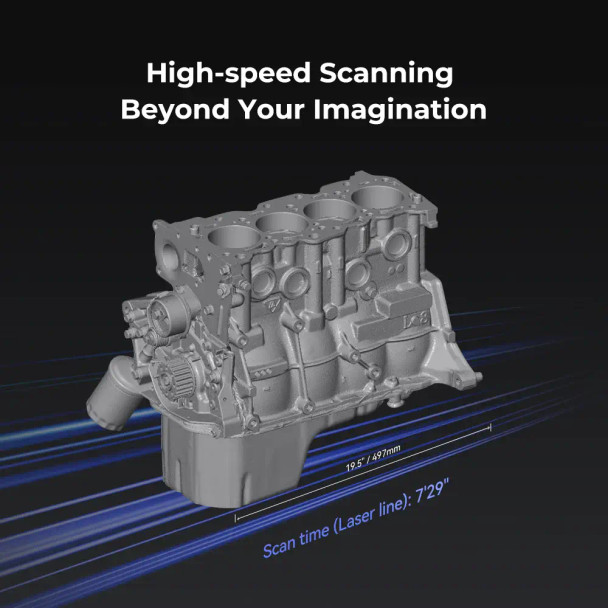

High-speed Scanning Beyond Your Imagination

Laser Line Scanning Achieve scan frame rates of up to 60fps.
Infrared Structured Light Scanning Scan at frame rates of up to 30fps.

Portable Wireless Scanner

RaptorX features a wireless handle seamless data transmission, redefining portability in blue laser 3D scanning.

*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

Wi-Fi 6 AX6000 - Fast Data Transmission

Equipped With advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to the your computer.
Low latency: 10mS
Transmission rate: 4.7Gbps

Large Capacity & Fast Charging

Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).

NIR Structured Light Scanning

Equipped with One-Shot 3D imaging technology, the Creality RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

High Performance Structure, Details Revealed

  • . 2.3 Million Pixel 3D Imaging Camera
  • . Low distortion lens, less than 5‰
  • . φ20mm large depth of field lens
  • . 9-elements glass lens
  • . Metal lens barrel and holder

Objects between 0.2-157''/ 5-4000mm

Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5
mm³-4000*4000*4000 mm³. Effortlessly scanning engineering parts, molds, human bodies, automobile components, and more.

Laser Line Scanning
Minimum scan size: 5*5*5 mm³,
Maximum scan size: 4000*4000*4000 mm³

NIR Structured Light Scanning
Scanning objects ranging from
150*150*150mm³-2000*2000*2000mm³

Wider Applications, Better Performance

Blue Laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
7-line laser: ≤50,000 lux ; 34 cross lines: ≤100,000 lux

  • With strong material adaptability, you can scan black/metal objects without sprays.
  • Equipped with One-Shot 3D imaging technology,RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
  • Blue light provides supplementary light for laser line scanning. White light is used to enhance the brightness of color textures.

24-bit Full-Color Scanning in All Modes

Lightweight and Portable

Weighs only 405g

New Intuitive Software with Powerful Features

CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.

Seamless Integration to Inspection, Design, 3D Printing Softwares

The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.

Specifications:

Scanning Modes 7 blue parallel laser lines 34 blue parallel laser lines (cross) NIR(infrared binocular structured light)
Accuracy up to 0.02mm 0.02mm 0.05mm
Volumetric Accuracy 0.02mm+0.06mm/m 0.05mm +0.1mm/m
Scanning rate
420,000 measurements/s
1,020,000 measurements/s
3,580,000 measurements/s
Single Capture Range
270mmx170mm @300mm

270mmx170mm @300mm
341mm x 232mm @400mm
397mm x 290mm @500mm
452mm x 348mm @600mm
665mm×574mm
@1000mm
Working distance
150-400mm
200-600mm
170-1000mm
Outdoor Scanning
≤ 50,000 lux
≤100,000 lux
≤ 30,000 lux
System Support
Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above
Minimum:i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory
macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above
Wireless Scanning
Support Support Support

Compared to Raptor, RaptorX is equipped with 34 cross blue laser lines for scanning and wireless scanning. Its scanning speed of 1.02 million points/s is 2.4 times that of Raptor; the depth of field range is 1.8 times that of Raptor, and the width is twice that of Raptor. This significantly improves scanning efficiency without compromising details.

Buy a Creality RaptorX 3D Scanner from Spool3D online in Canada without the surprise cost of the exchange rate!
