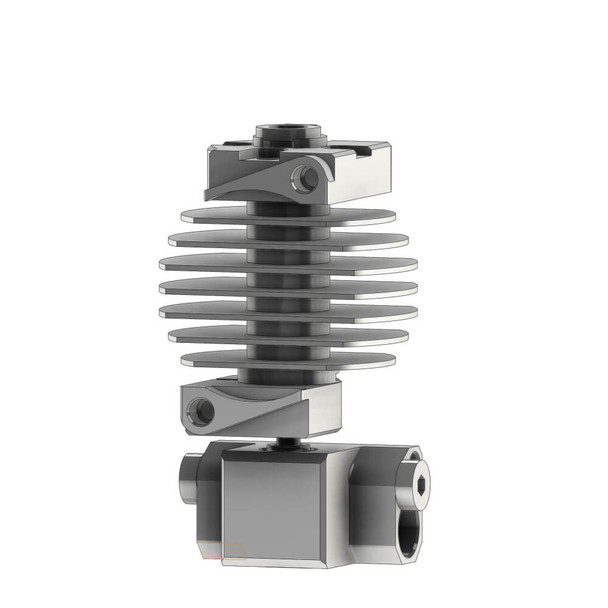

Copperhead™ Hot End by Slice Engineering

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

The new Hot End from Slice Engineering is available to order!

When you buy the Copperhead™ hotend:

• the Hot Block is always added;
• the Heat Break has to be selected;
• the Heat Sink is optional.

If you select a Heat Sink, make sure your printer, or feeder, has enough clearance and a compatible mounting system.

Nozzle not included : )

High Performance Heat
Rated up to 450°C, the Copperhead™ hot-end covers a wide gamut of printable thermoplastics and uses the same Bimetallic Heat Break™ technology found in the ground-breaking Mosquito™ to optimize heat transfer and reduce heat-creep. Modern design and high-quality materials are used, including a hardened Nickel plated Copper Alloy hot block, and a bimetallic heat break with Stainless Steel and Copper Alloy.

About the Heat Sink
The cutting-edge Heat Break and Hot Block that Slice Engineering designed for the Copperhead™, are its biggest advantage against the competition. That’s why in many occasions the Heat Sink it self can be skipped, and users can keep the one that come with their printers.

If you want to use the Heat Sink you currently have in your printer, just select above a compatible Heat Break and use the “No heat Sink” option.

Compatible nozzles
The hot block included in this product is compatible with the RepRap standard of nozzles (E3D, etc.).

What's in the Box

• Heat Sink
• Selected Heat Sink
• Mounting Hardware
• Heat Break
• Selected Heat Break
• Copperhead Hot Block
• The Best Orange Lollipops You’ve Ever Had

Dimensions and Weight
All dimensions and weights provided below are for reference only.

Heat Sink
Copperhead™ Heat Sinks come in two different variants to adapt to numerous mounting applications.

Mounting mechanism: Groove Mount
Size: 41.5 mm high x 19.75 mm wide x 28 mm diameter
Weight: 17.1 g

Mounting mechanism: Screw Mount
Size: 31 mm high x 19.75 mm wide x 28 mm diameter
Weight: 12.4 g

Heat Break
Copperhead™ Heat Breaks come in multiple variants to adapt to numerous 3D printers. Use the 3D Printer Compatibility Chart to determine which Bimetallic Heat Break™ is best suited for your application.

NOTE: Only the Standard Variant fits the Copperhead™ Heat Sink

Standard Variant – fits Copperhead™ Heat Sink & Raise3D Pro2
Definition: M6 threaded distal end, 6 mm smooth proximal end
Size: 18 mm length x 6 mm diameter
Weight: 3.3 g

RepRap 1.75 Variant – fits E3D V6, Prusa 3D printers & more
Definition: M6 threaded distal end, M7 threaded proximal end
Size: 23 mm length x 7 mm OD
Weight: 4.2 g

Mk 8 Variant – fits Makerbot Replicator & more
Definition: M6 threaded distal end, M6 threaded proximal end
Size: 27 mm length x 6 mm OD
Weight: 4.3 g

Mk 10 Variant – fits MakerGear printers & more
Definition: M6 threaded distal end, 7.78 mm shank with flats on proximal end
Size: 27 mm x 7.78 mm OD
Weight: 8.1 g

Heat Block
The Copperhead™ Hot Block is available in one variant that fits all Copperhead™ Heat Breaks. It features an M6 tapped hole to fit Rep Rap style nozzles.

Size: 23 mm wide x 12.5 mm tall x 15.5 mm deep
Weight: 18.0 g

Buy a Copperhead™ Hot End by Slice Engineering from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
