Bondtech DDX v3 For Creality Printers
The Bondtech DDX Direct Drive eXtruder for Creality 3D printers is an upgrade kit that replaces the original bowden with a direct drive setup. It is a high-performance Dual Drive extruder based on the BMG Bondtech Mini Geared.

Multiple Hotends Compatibility
This model was created to be compatible with the original hotend of each Creality model. Users may also upgrade the hotend to Copperhead™ or Mosquito™.

The DDX v3 is much easier to install
With this integrated fan shroud and mount the DDX v3 is even easier to install.
Snap the fan to the shroud without using screws.
Adjust the height of the shroud with one front access screw.

Using a bed probe with DDX
The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no space to attach a bed probe like the BLtouch, to the X-carriage, a mount can printed and attached to the right hand side of the DDX.

Bondtech DDX Direct Drive eXtruder
This Direct Drive eXtruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG. Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading hotends Copperhead™ or Mosquito™ from Slice Engineering, gives you a direct drive extruder with trouble free material feeding and enables the use of a wider range of materials. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using industrial grade SLS technology.

Make your 3D printer even better
Bondtech DDX Direct Drive eXtruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX housing design provides an effective Hot-End cooling. With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.

Easy To Setup
For ease of setup the kit is attached to the carriage with only 2 screws.
Product includes:

• DDX v3 Extruder
• Nema17 Pancake stepper motor
• Thumbscrew Assembly
• 70cm Stepper motor extension cable
• 60cm PTFE tube
• 7cm Capricorn tube
• 4 x Zip-ties
• 3 x M3x12mm screw
• 2 x M3x20mm screw
• M3 square nut
• M3x10mm button head screw

Ender 3/CR-10 Kit Includes:

• SLS Ender Hotend Adapter
• 10079-3 PA12 Fan Shroud

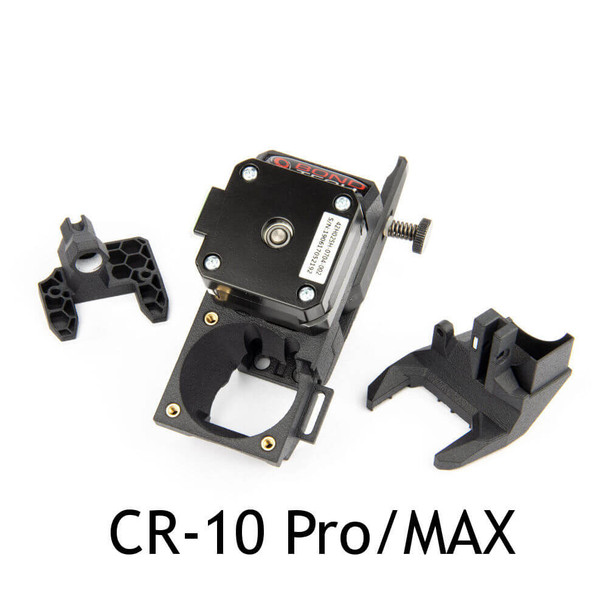

CR-10 S Pro/MAX Kit Includes:

• 10079-4 PA12 Fan Shroud
• 10079-44 SLS Bowden Adapter (supplied with a tapered thread to better fit the stock metal threaded push-fit)
• M3x18 Screw
• M3x20 Screw
• 2 x M3x8 Screw
• 2 x M3 5mm Square Nut

CR-10 v2/v3 Kit Includes:

• 1x 10079-5-T DDX 5015 Fan Shroud;
• 1x 10079-65 DDX Mount Plate for CR-10 v2;
• 1x 10079-45 DDX Bowden Mount
  (supplied with a tapered thread to better fit the stock metal threaded push-fit);
• 1x 10079-80 DDX Z-Sensor Plate for CR-120 v2;
• 7x M3 Square Nut;
• 2x M3x25 Screw;
• 2x M3x20 Screw;
• 2x M3x8 Screw;

Compatibility Table
Ender3/CR-10 Kit is Compatible with the following models:

• Ender-3
• Ender-3 v2
• Ender-3 Pro
• Ender-5
• Ender-5 Pro
• Ender-5 Plus*1
• Ender-6 *2
• CR-10 (Mini)
• CR-10S
• CR-10 S4
• CR-10 S5

*1 - Using DDX on Ender-5 Plus
On the Ender-5 Plus, the DDX fan shroud will collide with the right hand rail if nothing is changed on the unit. To fix that problem Bondtech sells the SLS DDX Bed Rod Holder Set for Ender-5 Plus and supply as alternative the STL file of the new Z-rod holder that can solve this issue. Download the file from the list here.

*2 - DDX v3 on Ender-6
To use the DDX v3 on the Ender-6 please mind the following:

The BL Touch mounts we sell are not compatible with the the Ender-6. We redesigned the mount and the STL model is available to download here.
When using the DDX v3 and a Copperhead hotend on the Ender-6, it is necessary to adjust the height of the Z-stop screw. We designed a Z-stop Screw Adjuster and the STL model is available to download here.

CR-10S Pro/MAX Kit is Compatible with the following models:

• CR-10S Pro
• CR-10S Pro v2
• CR-10 Max *3

*3 - Using DDX v3 on CR-10 Max
On the Cr-10 Max the z-height will be limited to in between 430mm and 455mm, instead of the original 470.
This is due to the higher position of the push-fit on our extruder, that forces the bowden to bend at a lower level under the top bar. Use the Z(height) parameter at Machine Settings in the slicer to reflect this lower limit. Select the lower value and fine tune the max Z with testing.

CR-10 v2/v3 Kit is Compatible with the following models:

• CR-10 v2/v3 *4

*4 - DDX V3 on your CR-10 v2 or v3 a hotend upgrade is required.
Available options are:

• Copperhead™;
• Mosquito™;
• Mosquito™ Magnum;
• Micro Swiss All Metal

Install the hotend and hotend adapter inside the DDX V3 before applying the DDX Mount Plate

STEP BY STEP GUIDES

These are the guides that apply to the DDX Direct Drive eXtruder for Creality:

DDX For Creality Step By Step Guides
00. Changing Machine Settings

Guides For Ender-3 and similar

01. Stripping Down Your Creality Ender-3

02. Installing DDX On Creality Ender-3

Guides For CR-10S Pro and similar

01. Stripping Down Your Creality CR-10S Pro

02. Installing DDX On Creality CR-10S Pro
