Enraged Rabbit Carrot Feeder v2 Kit (ERCFv2)

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

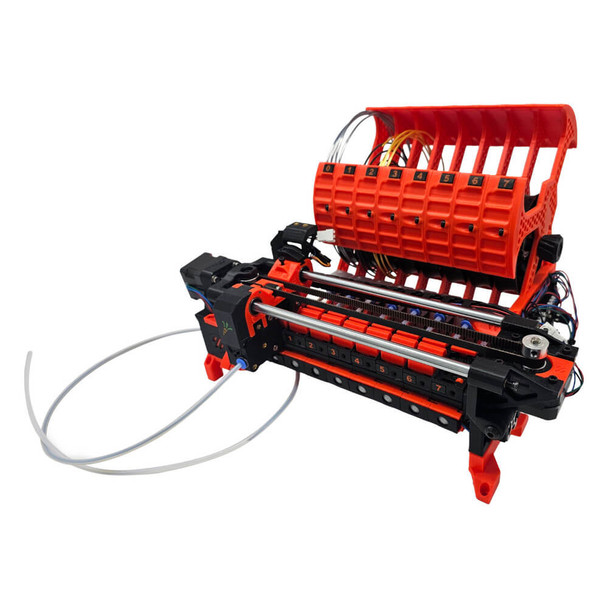

The Enraged Rabbit Carrot Feeder v2 Kit (ERCFv2), an MMU or Multimaterial Unit/Upgrade, allows for the automatic change of filaments on your 3D printer. You can use it to create beautiful multi-colored prints or, if you're lazy, simply to avoid loading filament by hand.

This is an 8 channel kit made from higher quality components.

Enraged Rabbit Carrot Feeder v2 Kit (ERCFv2) GitHub

This kit does NOT include any filament or 3D printed parts. Soldering iron and crimpers required.

In the Box:

• Hardware
• 9 x BMG Style Extruder Gear Sets
• 1 x 2020 Extrusion (239mm)
• 2 x Fushi 8mm smooth rods (237mm)
• 1 x D-cut 5mm shaft (256mm)
• 2 x Fushi LM8UU Linear Bearings
• 8 x Fushi 608ZZ ABEC7 Bearings
• 1 x Fushi V623ZZ Bearing
• 6 x Fushi MR85ZZ Bearings
• Electronics
• 1 x LDO 1.8 deg NEMA14 Motor - LDO-35STH28-1004AC3DT
• 1 x LDO 1.8 deg NEMA17 Motor - LDO-42STH20-1004ASH(VRN)
• 1 x TowerPro MG90S Servo
• 1 x Binky Encoder
• 11 x OMRON D2F-5L Micro Switch
• 2 x NeoPixel single LEDs
• 1 x BigTreeTech MMB CAN v1.0 ERCF (and connectors)
• 2 x BigTreeTexh TMC2209
• 4 x Flex PCB LED strips
• 2m FEP wires of each colour(Red, Blue, Green, Black)
• Motion
• 3 x Gates 2GT 20T Pulley for 6mm Belt
• 1 x 2GT 6mm 20T idler
• 0.6m Gates 2GT 6mm timing belt
• 1 x 2GT closed loop 6mm belt x 188mm
• Fasteners
• 3 x M2 x 8mm self tapping
• 21 x M2 x 10mm SHCS
• 40 x M3 x 5 x4 Knurled Threaded Inserts
• 12 x M3 x 3mm Set Screws
• 1 x M3 x 6mm SHCS
• 5 x M3 x 8mm BHCS
• 4 x M3 x 8mm FHCS
• 71 x M3 x 8mm SHCS
• 6 x M3 x 12mm AHCS
• 18 x M3 x 16mm SHCS
• 8 x M3 x 20mm SHCS
• 9 x M3 x 25mm SHCS
• 2 x M3 x 40mm SHCS
• 25 x M3 T Roll-In Spring Nuts
• 2 x M3 Washers
• 1 x M5 x 16mm BHCS
• 2 x M5 x 30mm BHCS
• 3 x M5 Nyloc Nuts
• Miscellaneous
• 2 x 3x2mm round Neodynium Magnets
• 16 x 6x3mm round Neodynium Magnets
• 8 x 5.5mm ball bearings
• 1 x 6 x 10mm compression spring
• 1 x 7x7 Drag Chain
• 27 x ECAS Bowden Fitting
• 27 x ECAS Clip
• 450mm x 2.5mm x 4mm PTFE Tube
• 1000mm x 2.5mm x 4mm PTFE Tube
• Zip Ties

Compatibility

• Designed to be used with the Happy Hare MMU firmware
• Voron Printers
• Klipper based printers
