Duet Integrated PanelDue Display Screen

(3 reviews) Write a Review
SKU:
PANEL-DUE-INTEGRATED
  • Duet3D Panel Due Integrated Touch Screen TFT Display - 3D Printer Spare Parts
  • Duet3D Panel Due Integrated Touch Screen TFT Display - 3D Printer Spare Parts
$129.00 - $164.00

Description

Free shipping in Canada for orders over $140 before tax. (via Canada Post)

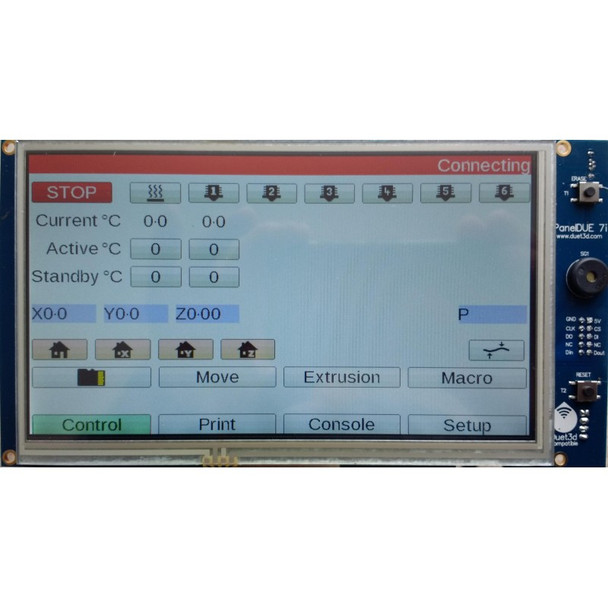

The PanelDue 5i and 7i are colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD's PCB. Features:-

  • Resolution of  800×480 pixels on a 5 inch or 7 inch LCD.
  • 5V power from host 3D printer controller.
  • 2-wire async serial interface with 3.3V signal level (5V tolerant input).
  • Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is supplied.
  • 4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied (1m long)
  • The control board without a screen or with a separate 4.3 inch 480×272 pixel LCD are available from this PanelDue product listing.

There is an overview of connecting a PanelDue in the documentation.

Buy a Duet3D PanelDue integrated Touch Screen from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!

View AllClose

3 Reviews

  • 5

    Works Great

    Posted by Alex MacKinnon on May 28, 2022

    This makes using the Duet System much easier, and certainly speeds up troubleshooting. Recommended.

  • 5

    A must if you have a WIFI Duet

    Posted by Jeremy F on November 21, 2021

    I found the Duet web control to be less than 100% reliable when I was getting all my settings honed in at the beginning. Admittedly, its a lot more critical to have full control when you're testing out new settings, and I always seemed to have a wifi interruption right when I needed to make an important change or try to avoid a disaster. With the Panel Due, I'm able to make any changes I need right away, whether wifi is working or not.

  • 5

    Review: Duet Integrated PanelDue Display Screen

    Posted by Adam on August 23, 2021

    If you've installed a Duet board in your printer and Like having a screen, this thing is easy to install (lots of case option can be found online) and works great!
