Description
Free shipping in Canada for orders over $140 before tax. (via Canada Post)

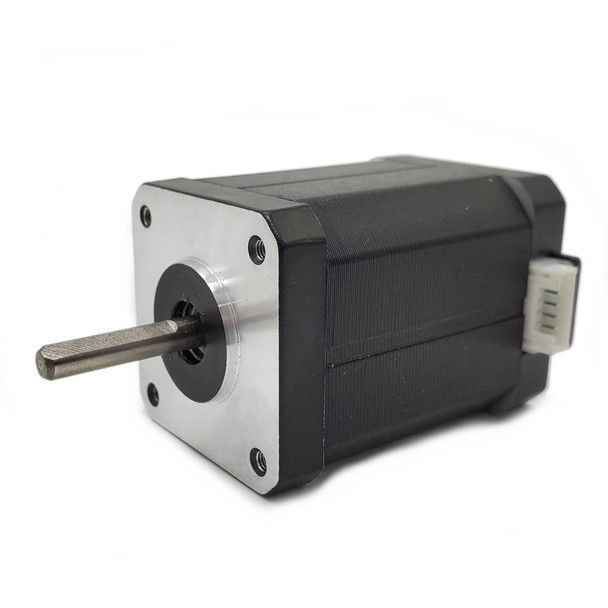

Our biggest motor for when you need extra torque from a stationary motor.

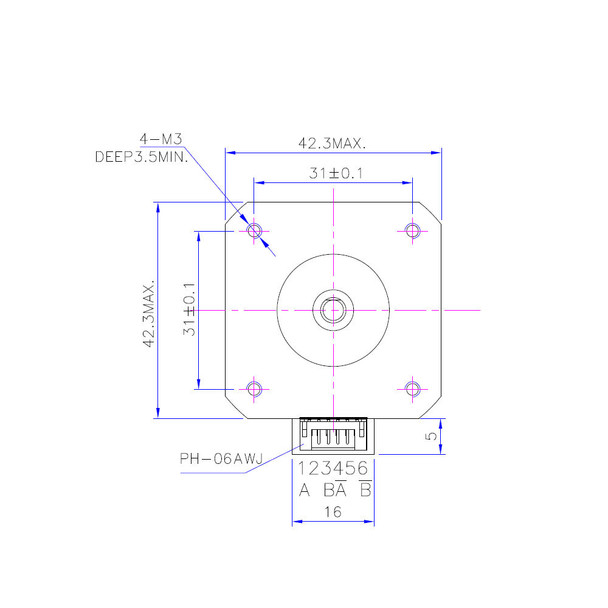

- 42 mm x 42 mm x 60 mm (L x W x H)
- Phase Number: 2 Phases
- Step Angle: 0.9° +/- 5%
- Rated Voltage: 2.8V DC
- Rated Current: 2.0 A/Phase DC
- Resistance/phase @ 20°C : 1.4 Ω/phase
- Inductance: 2.8 mH +/- 20%
- Holding Torque: 0.6 N.m (6.1 kg.cm)
- Insulation Resistance: >100 MΩ (DC 500V)
- Rotation Direction: A-AB-B CW
- Weight: 0.50 kg
- HI POT AC 600 V / 1mA / 1S
- Insulation: Class B

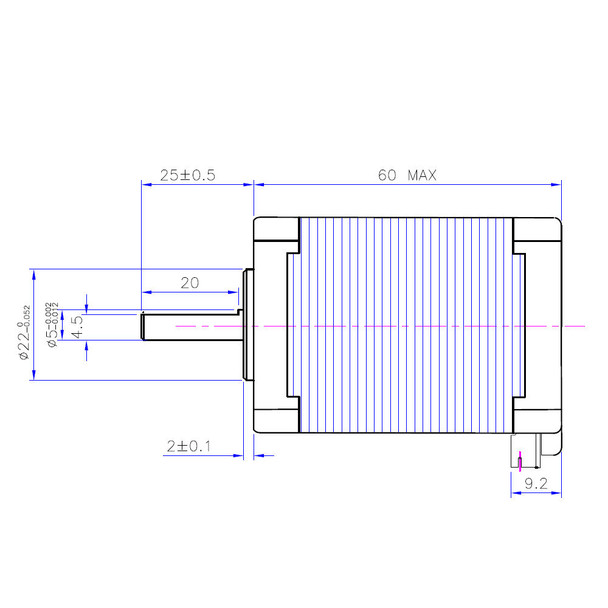

- Shaft Diameter: 5 mm
- Shaft Length: 23 mm (20mm for D)
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Package Contents:
- 60mm NEMA17 stepper motor (42STH60-2004MAC)
- 1000mm motor cable with connector: XH 2.54
Buy a 0.9 degree 60mm NEMA17 stepper motor from Spool3D for your 3D printer in Canada without the surprise cost of the exchange rate!
2 Reviews
-
Needs way too mich voltage
I pcied these up a while back and things started out fine. Then the layer shifting started, and got worse. Prints would do fine IF you slowed it down to below 70% speed. Was told to up the Vref voltage as these like a lot of voltage (more than 2 volts). Made it through 3 or 4 prints then it fried the board. New board installed and it layer shifts worse than ever. Now I am looking for new steppers again.
-
Nema17 motor
This motor burned two of my board drivers. Bought it as a drop in replacement of my old motor. Ended up loosing two of my duet board drivers. Reached out to spool 3d, never got an answer.
